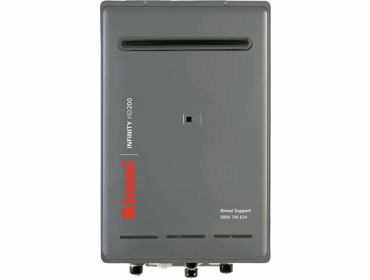

Rinnai external continuous flow gas hot water heater preset to 75 °C with status monitor. The status monitor has an added feature of displaying an LC (00) error code when unit requires cleaning (due to scale build-up).
Rinnai external continuous flow gas hot water heater preset to 75 °C with status monitor. The status monitor has an added feature of displaying an LC (00) error code when unit requires cleaning (due to scale build-up).
Improved durability in hard water areas (such as Wanganui).
Hot water capacity
2.4 to 30 litres per minute.
Suitable for
Commercial and domestic external applications
• Applications requiring higher hot water temperatures, can be set up to 85 °C
• Hard water areas (such as Wanganui)
• Mains and medium pressure systems
• Solar installations as a gas boost
Gas type
Available for Natural Gas or LPG. Specify gas type at time of purchase.
Basic clearances
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.
Clearance below eaves, balconies, and other projections, for all models is 300 mm.
* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.
REU number:
REU-VRM2632WC
Factory preset temperature:
75 °C
Rinnai product code:
INFHD200HNCN/ INFHD200HNCL
Capacity
Hot water capacity: 2.4 to 30 litres per minute
Nominal water capacity: 26 litres per minute at a 25 °C rise (1560 L/h)
Nominal water capacity: 16.4 litres per minute at a 40 °C rise (984 L/h)
Connections
Hot water oulet: R¾ (20 mm)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Exhaust system
Forced flue
Frost protection
Fitted as standard.
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Ignition system
Direct electronic ignition
Injector size
NG: 1.25, 1.95, LPG: 0.75, 1.15
Ingress protection rating
IPX4
Line pressure (min.)
NG: 1.0 kPa, LPG: 2.0 kPa
Line pressure (max.)
3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa).
In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.
Noise level
50 dB(A)
NOx af
less than 60 ppm
Power consumption
Normal: 48 W (NG) and 60 W (LPG), Standby: 2 W, Automatic Frost Protection: 100 W
Rinnai EXT COMM INF 26L LPGINFHD200HNCL
$2,472.50
Rinnai external continuous flow gas hot water heater preset to 75 °C with status monitor. The status monitor has an added feature of displaying an LC (00) error code when unit requires cleaning (due to scale build-up).
Description
Rinnai external continuous flow gas hot water heater preset to 75 °C with status monitor. The status monitor has an added feature of displaying an LC (00) error code when unit requires cleaning (due to scale build-up).
Improved durability in hard water areas (such as Wanganui).
Hot water capacity
2.4 to 30 litres per minute.
Suitable for
• Applications requiring higher hot water temperatures, can be set up to 85 °C
• Hard water areas (such as Wanganui)
• Mains and medium pressure systems
• Solar installations as a gas boost
Gas type
Available for Natural Gas or LPG. Specify gas type at time of purchase.
Basic clearances
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.
Clearance below eaves, balconies, and other projections, for all models is 300 mm.
* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.
Nominal water capacity: 26 litres per minute at a 25 °C rise (1560 L/h)
Nominal water capacity: 16.4 litres per minute at a 40 °C rise (984 L/h)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.
Minimum water flow: 2.4 litres per minute
• relaunched 2011
• Declaration Number: 12410201012
• Certificate Number: 6330
