Rinnai EXT COMM INF 26L NG INFHD200HNCN

Product Price:
$2,472.50 incl GST
Add to cart
Installed Price
$3,800.00
Confirm Price Now

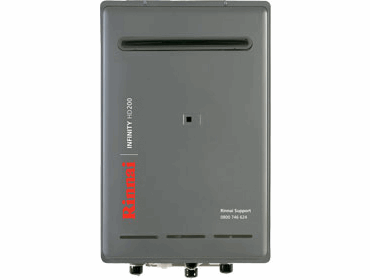

Rinnai external continuous flow gas hot water heater preset to 75 °C with status monitor. The status monitor has an added feature of displaying an LC (00) error code when unit requires cleaning (due to scale build-up).

  • Suitable for 2 - 3 bedrooms
  • Suitable for 2 - 4 People
  • More efficient than other units
Add to Wishlist
Compare
SKU: rinnai080285. Category: .

Product Description

Rinnai external continuous flow gas hot water heater preset to 75 °C with status monitor. The status monitor has an added feature of displaying an LC (00) error code when unit requires cleaning (due to scale build-up).

Improved durability in hard water areas (such as Wanganui).

Hot water capacity
2.4 to 30 litres per minute.

Suitable for

  • Commercial and domestic external applications
    • Applications requiring higher hot water temperatures, can be set up to 85 °C
    • Hard water areas (such as Wanganui)
    • Mains and medium pressure systems
    • Solar installations as a gas boost

Gas type
Available for Natural Gas or LPG. Specify gas type at time of purchase.

Basic clearances
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.

Clearance below eaves, balconies, and other projections, for all models is 300 mm.

* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.

REU number: REU-VRM2632WC
Factory preset temperature: 75 °C
Rinnai product code: INFHD200HNCN/ INFHD200HNCL



Capacity Hot water capacity: 2.4 to 30 litres per minute
Nominal water capacity: 26 litres per minute at a 25 °C rise (1560 L/h)
Nominal water capacity: 16.4 litres per minute at a 40 °C rise (984 L/h)
Connections Hot water oulet: R¾ (20 mm)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Exhaust system Forced flue
Frost protection Fitted as standard.
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Ignition system Direct electronic ignition
Injector size NG: 1.25, 1.95,   LPG: 0.75, 1.15
Ingress protection rating IPX4
Line pressure (min.) NG: 1.0 kPa, LPG: 2.0 kPa
Line pressure (max.) 3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa).

In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.
Noise level 50 dB(A)
NOx af less than 60 ppm
Power consumption  Normal: 48 W (NG) and 60 W (LPG), Standby: 2 W, Automatic Frost Protection: 100 W
Safety devices  Flame failure, boil-dry protection, overheat protection (OHS), fusible link, pressure relief valve, combustion fan rpm check
Water supply Nominal operating pressure: 130-1000 kPa
Minimum water flow: 2.4 litres per minute
Weight 21 kg
Market release • first launched 2010
• relaunched 2011
Compliance ES: Supplier Declaration of Compliance
• Declaration Number: 12410201012
• Certificate Number: 6330
