Product Description

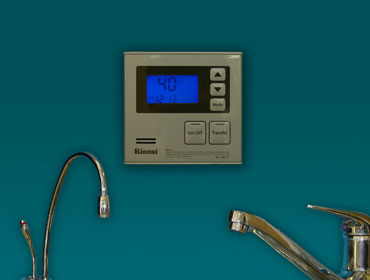

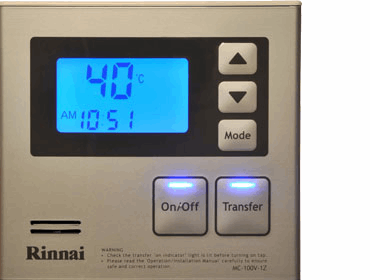

The Rinnai Kitchen Deluxe Controller works in conjunction with the Rinnai Bathroom Deluxe Controller to provide you full control over your hot water.

Rinnai digital controllers allow you to select the exact temperature of the hot water at the tap within the controller temperature range. This has a number of benefits:

• Safety, especially if you have young children, the hot water can be pre-set to a child-safe level.
• No need to mix hot and cold water, this reduces the affect of temperature spiking when another tap in the building is turned on.
• Allows diagnosis of problems (such as gas supply disruption) when the appliance is serviced by displaying ‘error’ codes, which the service person can use to trace the fault.

Extended warranty
Rinnai INFINITY installations with a Rinnai controller receive an extended warranty.

Suitable for
Domestic installations with a Rinnai INFINITY continuous flow gas hot water heater installed, refer compatible water heater models below.

Each remote controller can be individually programmed, however the water heater can only deliver one set temperature at any time.

Rinnai water controllers cannot be used with Rinnai INFINITY units connected to solar systems, or when a Rinnai iHeat is installed.

Positioning
Deluxe controllers are water resistant.

All deluxe water controllers must be installed at least 400 mm above the highest part of a sink or basin.

Compatible with the following Rinnai water heater models

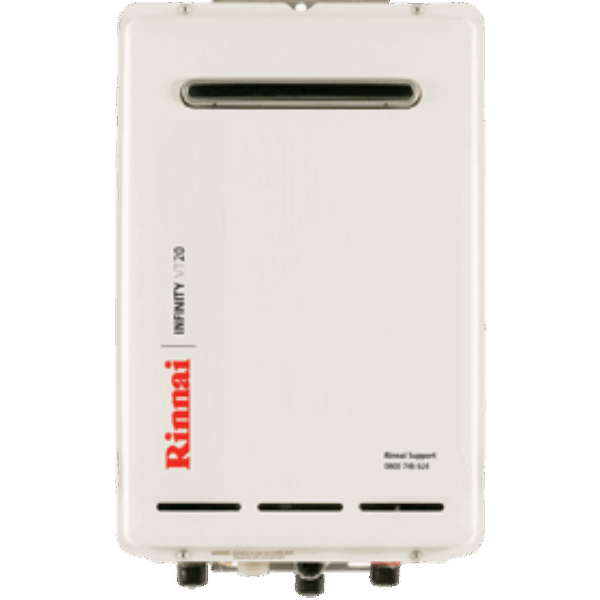

• Rinnai INFINITY VT range
• Rinnai INFINITY EF range

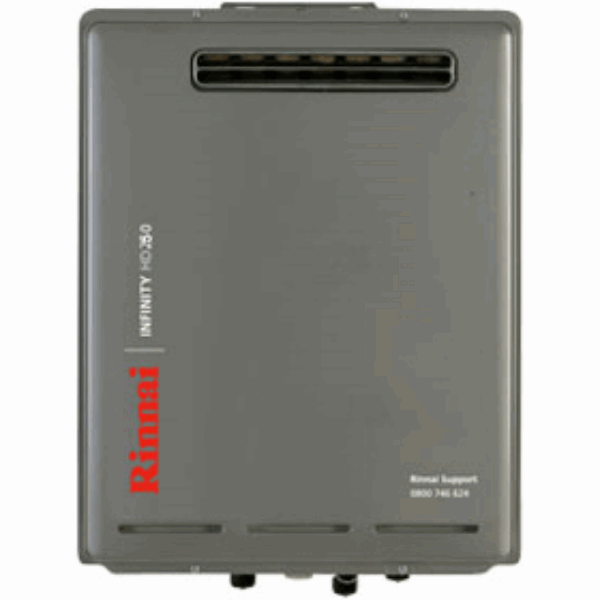

• Rinnai INFINITY HD range
• Rinnai INFINITY XR range

Controller configurations
A maximum of four water controllers can be fitted. Any combination of the deluxe, compact, and wireless controllers can be used within the following parameters:

• Only ONE master can be installed. This can be a Kitchen Deluxe, Compact, or Wireless Controller.
  • Up to two Bathroom Deluxe Controllers can be installed.
  • Fourth controller in any installation must be a Compact or Wireless Controller.

More Installations Comming Soon...
