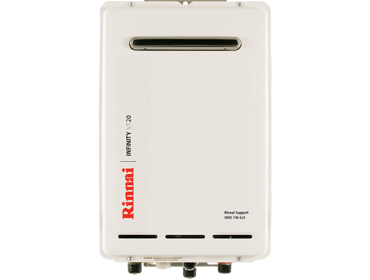

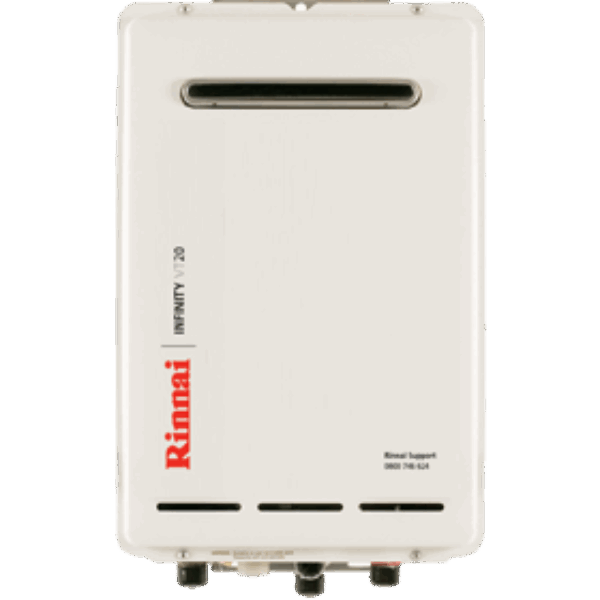

The Rinnai INFINITY VT is a continuous flow gas hot water system for external domestic applications. This type of hot water system produces endless hot water, and is an energy efficient water heating system because it's only on when you need hot water.
The Rinnai INFINITY VT is a continuous flow gas hot water system for external domestic applications. This type of hot water system produces endless hot water, and is an energy efficient water heating system because it’s only on when you need hot water.
The all-new Rinnai INFINITY VT range has an improved minimum start-up flow rate, saving on water and ensuring your Rinnai INFINITY is future proofed for water efficient tapware.
Suitable for:
• external domestic applications
• low simultaneous hot water demand applications (homes with 1-2 bathrooms).
• mains and medium pressure systems
• solar installations as a gas boost
Hard or acidic water will need to be treated to use this product.
Gas type
NG or LPG
General clearances
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.
Clearance below eaves, balconies, and other projections, for all models is 300 mm.
* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.
REU number:
REU-VR2426WG
Factory preset temperature:
55 °C
Rinnai product code
INFVT24N/INFVT24L
Capacity
Hot water capacity: 1.8-24 litres
Nominal water capacity: 24 litres per minute at a 25 °C rise (1440 L/h)

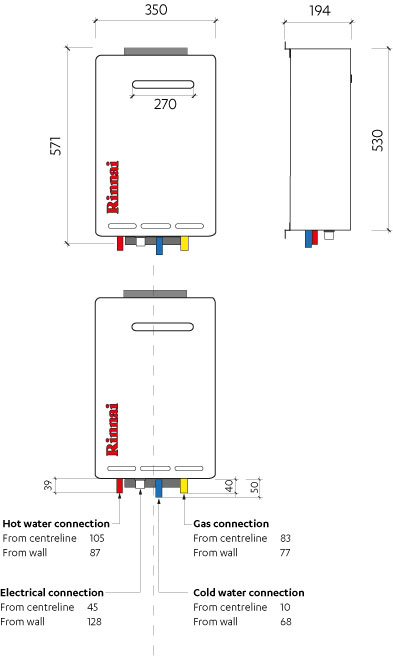

Connections
Hot water outlet: R¾ (20 mm)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Exhaust system
Forced flue
Frost protection
Fitted as standard.
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
Ignition system
Direct electronic ignition
Injector size
NG: 1.0, 1.55
LPG: 0.7, 1.05
Line pressure (min.)
NG: 1.13 kPa, LPG: 2.75 kPa
Line pressure (max.)
3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa).
In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.
Power consumption
Normal: 47 W (NG), 53 W (LPG), Standby: 2 W, Automatic Frost Protection: 74 W
Pressure relief
Valve opens at 2060 kPa, valve closes at 1470 kPa
Noise level
48 dB(A)
NOx af
Less than 60 ppm
Safety devices
Flame failure, boil-dry protection, fusible link, pressure relief valve and combustion fan rpm check
Rinnai VT 24EXT LPG INFVT24L
$1,482.35
The Rinnai INFINITY VT is a continuous flow gas hot water system for external domestic applications. This type of hot water system produces endless hot water, and is an energy efficient water heating system because it's only on when you need hot water.
Description
The Rinnai INFINITY VT is a continuous flow gas hot water system for external domestic applications. This type of hot water system produces endless hot water, and is an energy efficient water heating system because it’s only on when you need hot water.
The all-new Rinnai INFINITY VT range has an improved minimum start-up flow rate, saving on water and ensuring your Rinnai INFINITY is future proofed for water efficient tapware.
Suitable for:
• external domestic applications
• low simultaneous hot water demand applications (homes with 1-2 bathrooms).
• mains and medium pressure systems
• solar installations as a gas boost
Hard or acidic water will need to be treated to use this product.
Gas type
NG or LPG
General clearances
The following diagram has been provided to assist you in determining where (and if) an external continuous flow water heater can be positioned. If in doubt, prior to purchase, consult a licensed gasfitter.
Clearance below eaves, balconies, and other projections, for all models is 300 mm.
* Rinnai recommend 1.5 m to give enough clearance for the pipe work, and to safely expel flue gases.
Nominal water capacity: 24 litres per minute at a 25 °C rise (1440 L/h)
Cold water inlet: R¾ (20 mm)
Gas supply: R¾ (20 mm)
Frost protection operates automatically, as long as the appliance is connected to the electrical power supply, by activating when the temperature inside the unit drops below 3.5 °C, and turns off once the temperature inside the unit reaches 7 °C.
LPG: 0.7, 1.05
In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.
Activation flow rate: 2.4 litres per minute
• Declaration Number: 971220094
• Certificate Number: 6930
Related Products
Rinnai VT 16EXT NG INFVT16N

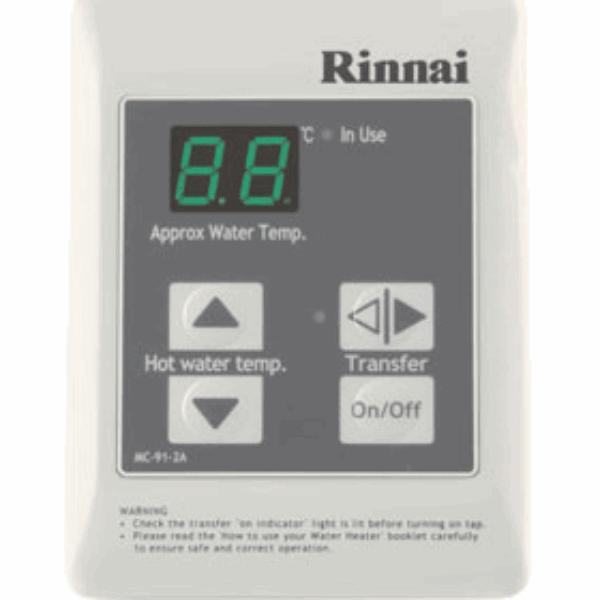

$1,139.00Rinnai Compact Controller Cable R1069 15M RIN
